CENTROID OF A STRAIGHT & CURVED LINE: ©subhankar karmakar 2011

CENTROID OF A STRAIGHT LINE:

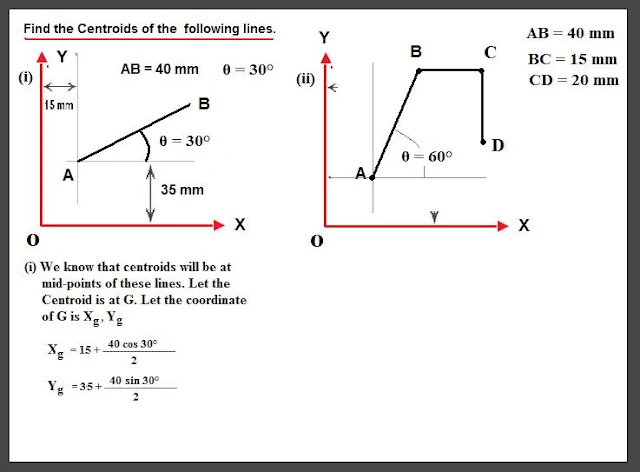

(a) Suppose we have straight lines of length (L) in a coordinate system.  Let the lines are named as AB, BC and CA as shown in the figure. The centroids of these lines will at their mid-points viz. G₁, G₂, G₃.  The lines may be vertical, horizontal or inclined.

(b) For a curved line, a centroid G(X_g,Y_g)can be defined by the equations,

X_g = (1/L)∫x.dL   ------ (i)

Where dL = elemental length and L= total length of the line.

Y_g = (1/L)∫y.dL   ------ (ii)

Suppose we have a quarter circular arc in a co-ordinate system as shown in the figure. Total length of the arc AB = (πR)/2 . We take an arbitrarily small length of the arc CD and denote it as dL.

So, dL = Rdθ  ------ (iii)    [ as s=Rθ ]

Where R = Radius of the quarter circular arc. Let the co-ordinate of the point D be D(x,y) where
x = Rcosθ -----(iv) and y = Rsinθ -----(v)

Hence   X_g = (1/L)∫x.dL  ;

here L = (πR)/2

        x = Rcosθ

     dL = Rdθ

     X_g = (2/πR)   ₀∫^π/2Rcosθ.Rdθ  =>  X_g = (2/πR) R²  ₀∫^π/2cosθ.dθ = 2R/π
      _Yg = (2/πR)   ₀∫^π/2Rsinθ.Rdθ  =>  _Yg = (2/πR) R²  ₀∫^π/2sinθ.dθ = 2R/π





Hence, for a quarter circular arc of radius R will be G(2R/π,2R/π)


CENTROID OF A LINE CONSISTS OF SEVERAL SIMPLE LINES :

TRUSS ANALYSIS: THEORY OF TRUSS:

TRUSS ANALYSIS: THEORY OF TRUSS:

TRUSS :

Truss is a kind of framed structure made of entirely by rigid metallic rods joined by pin. The rods are called as Links or Linkages and the pins are called as joints. Their primary goal is to support the applied loads or we can say they are primarily load bearing structures. We often encounter trusses in our daily life as trusses are used to support roofs of various kinds of industrial sheds. Trusses are used as poles carrying high tension electricity.

LINK/ LINKAGES :

A link is a rigid rod which can bear any external load applied on it. A link can bear two types of forces.

COMPRESSIVE FORCES :

When the external forces applied on the link or rod tries to decrease the length of the rod, then they are called as External Compressive Forces. A truss in equilibrium counters this compressive force by inducing an internal force, equal and opposite the externally applied force. The internal force thus induced balancing the external compressive force is named as Internal Compressive Forces. Generally Compressive Forces are considered as negative in truss analysis.

TENSILE FORCES :

When external loads applied on a link try to increase the length of the link, we call them External Tensile Loads. To neutral the tensile load applied on a link, an equal but opposite internal force is generated named as Internal Tensile forces. Tensile forces are generally considered as positive internal forces.

THE SIMPLEST TRUSS:

A triangular shaped truss made of three linkages and three joints is the simplest type of truss. As it is the simplest geometric shape where there is no change in shape with the application of forces at the joints if the length of rods/ linkages remain unchanged / constant.

MAXWELL'S TRUSS EQUATION:

To distinguish between "statically determinate structure" and "statically indeterminate structure" Maxwell formulated an equation involving the number of linkages (m) and number of joints (j).

The trusses which satisfies the equation,
m = 2j - 3
are statically determinate structures and named as "Perfect Trusses".

If m > 2j - 3, then the number of linkages are more than required, hence, called as "Redundant Trusses".

Where as if m < 2j - 3 for any truss, then the number of linkages are less than that of a perfect truss. These kinds of trusses are called as "Deficient Trusses".



ASSUMPTIONS CONSIDERED WHILE ANALYZING TRUSSES :

While analyzing trusses, to simplify the analysis we often consider certain assumptions. The purpose of these assumptions are the simplification of a complex problems. The assumptions are

(i) The links are perfectly rigid bodies, ie there occurs no change in the dimensions of the links.

(ii) The pin joints are perfectly smooth, ie there is no friction in the each and every joints.

(iii) The mass and weights of the links are so small compare to the magnitudes of the applied forces, that for truss analysis we shall neglect them. It means the links are massless as well as weightless.

(iv) The cross-sections and material of the links are uniform by nature.

(v) The external loads are only applied on a joint in the truss, whenever we shall place any external load, we must place it one of the joints in the truss.

(vi) Stress in each member is constant along its length.

The objective of analyzing the trusses is to determine the reactions and member forces. The methods used for carrying out the truss analysis with the equations of equilibrium and by considering only parts of the structure through analyzing its free body diagram to solve the unknowns.

Method of Joints





The first to analyze a truss by assuming all members are in tension reaction. A tension member is when a member experiences pull forces at both ends of the bar and usually denoted as positive (+ve) sign. When a member experiencing a push force at both ends, then the bar was said to be in compression mode and designated as negative (-ve) sign.
In the joints method, a virtual cut is made around a joint and the cut portion is isolated as a Free Body Diagram (FBD). Using the equilibrium equations of ∑ F_x = 0 and ∑ F_y = 0, the unknown member forces could be solve. It is assumed that all members are joined together in the form of an ideal pin, and that all forces are in tension (+ve) of reactions.
An imaginary section may be completely passed around a joint in the truss. The joint has become a free body in equilibrium under the forces applied to it. The equations ∑ H = 0 and ∑ V = 0 may be applied to the joint to determine the unknown forces in members meeting there. It is evident that no more than two unknowns can be determined at a joint with these two equations.

Figure 1: A simple truss model supported by pinned and roller support at its end. Each triangle has the same length, L and it is equilateral where degree of angle, θ is 60° on every angle. The support reactions, R_a and R_c can be determine by taking a point of moment either at point A or point C, whereas H_a = 0 (no other horizontal force).
Here are some simple guidelines for this method of truss analysis:

1. Firstly draw the Free Body Diagram (FBD),
2. Solve the reactions of the given structure,
3. Select a joint with a minimum number of unknown (not more than 2) and analyze it with ∑ F_x = 0 and ∑ F_y = 0,
4. Proceed to the rest of the joints and again concentrating on joints that have very minimal of unknowns,
5. Check member forces at unused joints with ∑ F_x = 0 and ∑ F_y = 0,
6. Tabulate the member forces whether it is in tension (+ve) or compression (-ve) reaction.


Figure 2: The figure showing 3 selected joints, at B, C, and E. The forces in each member can be determine from any joint or point. The best way to start by selecting the easiest joint like joint C where the reaction R_c is already obtained and with only 2 unknown, forces of F_CB and F_CD. Both can be evaluate with ∑ F_x = 0 and ∑ F_y = 0 rules. At joint E, there are 3 unknown, forces of F_EA, F_EB and F_ED, which may lead to more complex solution compare to 2 unknown values. For checking purposes, joint B is selected to shown that the equation of ∑ F_x is equal to ∑ F_y which leads to zero value, ∑ F_x = ∑ F_y = 0. Each value of the member’s condition should be indicate clearly as whether it is in tension (+ve) or in compression (-ve) state.

* (Trigonometric Functions:
Taking an angle between member x and z…

• Cos θ = x / z
• Sin θ = y / z
• Tan θ = y / x )

Method of Sections





The section method is an effective method when the forces in all members of a truss are being able to determine. Often we need to know the force in just one member with greatest force in it, and the method of section will yield the force in that particular member without the labor of working out the rest of the forces within the truss analysis.
If only a few member forces of a truss are needed, the quickest way to find these forces is by the method of sections. In this method, an imaginary cutting line called a section is drawn through a stable and determinate truss. Thus, a section subdivides the truss into two separate parts. Since the entire truss is in equilibrium, any part of it must also be in equilibrium. Either of the two parts of the truss can be considered and the three equations of equilibrium ∑ F_x = 0, ∑ F_y = 0, and ∑ M = 0 can be applied to solve for member forces.


Figure 3: Using the same model of simple truss, the details would be the same as previous figure with 2 different supports profile. Unlike the joint method, here we only interested in finding the value of forces for member BC, EC, and ED.
Few simple guidelines of section truss analysis:

1. Pass a section through a maximum of 3 members of the truss, 1 of which is the desired member where it is dividing the truss into 2 completely separate parts,
2. At 1 part of the truss, take moments about the point (at a joint) where the 2 members intersect and solve for the member force, using ∑ M = 0,
3. Solve the other 2 unknowns by using the equilibrium equation for forces, using ∑ F_x = 0 and ∑ F_y = 0.

Note: The 3 forces cannot be concurrent, or else it cannot be solve.





Figure 4: A virtual cut is introduce through the only required members which is along member BC, EC, and ED. Firstly, the support reactions of R_a and R_d should be determine. Again a good judgment is require to solve this problem where the easiest part would be consider either on the left hand side or the right hand side. Taking moment at joint E (virtual pint) on clockwise for the whole RHS part would be much easier compare to joint C (the LHS part). Then, either joint D or C can be consider as point of moment, or else using the joint method to find the member forces for F_CB, F_CE, and F_DE. Note: Each value of the member’s condition should be indicate clearly as whether it is in tension (+ve) or in compression (-ve) state.

THE CONCEPT OF MOMENT:

Moment of force (or moment) is the tendency of a force to twist or rotate an object. This is an important, basic concept in engineering and physics. A moment is valued mathematically as the product of the force and the moment arm. The moment arm is the perpendicular distance from the point of rotation, to the line of action of the force. The moment may be thought of as a measure of the tendency of the force to cause rotation about an imaginary axis through a point. (Note: In mechanical and civil engineering, "moment" and "torque" have different meanings, while in physics they are synonyms.)


The moment of a force can be calculated about any point and not just the points in which the line of action of the force is perpendicular. Image A shows the components, the force F, and the moment arm, x when they are perpendicular to one another. When the force is not perpendicular to the point of interest, such as Point O in Images B and C, the magnitude of the Moment, M of a vector F about the point O is

where

is the vector from point O to the position where quantity F is applied.

× represents the cross product of the vectors.

[In the figure a moment at Point O, when the components are perpendicular to the Point O. Image B and Image C illustrate the components of a Moment at Point O, when the components are not perpendicular to point O.]

In mechanical engineering (unlike physics), the terms "torque" and "moment" are not interchangeable. "Moment" is the general term for the tendency of one or more applied forces to rotate an object about an axis (the concept which in physics is called torque). "Torque" is a special case of this: If the applied force vectors add to zero (i.e., their "resultant" is zero), then the forces are called a "couple" and their moment is called a "torque".
For example, a rotational force down a shaft, such as a turning screw-driver, forms a couple, so the resulting moment is called a "torque". By contrast, a lateral force on a beam produces a moment (called a bending moment), but since the net force is nonzero, this bending moment is not called a "torque".

A particle is located at position r relative to its axis of rotation. When a force F is applied to the particle, only the perpendicular component F⊥ produces a torque. This torque τ = r × F has magnitude τ = |r|  |F⊥| = |r| |F| sinθ and is directed outward from the page.

A Couple is a system of forces with a resultant (a.k.a. net, or sum) moment but no resultant force. Another term for a couple is a pure moment. Its effect is to create rotation without translation, or more generally without any acceleration of the centre of mass.

The resultant moment of a couple is called a torque. This is not to be confused with the term torque as it is used in physics, where it is merely a synonym of moment. Instead, torque is a special case of moment. Torque has special properties that moment does not have, in particular the property of being independent of reference point.

Simple Couple:

The simplest kind of couple consists of two equal and opposite forces whose lines of action do not coincide. This is called a "simple couple". The forces have a turning effect or moment called a torque about an axis which is normal to the plane of the forces. The SI unit for the torque of the couple is newton metre.
If the two forces are F and −F, then the magnitude of the torque is given by the following formula:

where

τ is the torque

F is the magnitude of one of the forces

d is the perpendicular distance between the forces, sometimes called the arm of the couple

The magnitude of the torque is always equal to Fd, with the direction of the torque given by the unit vector , which is perpendicular to the plane containing the two forces. When d is taken as a vector between the points of action of the forces, then the couple is the cross product of d and F.


Independence of reference point:

The moment of a force is only defined with respect to a certain point P (it is said to be the "moment about P"), and in general when P is changed, the moment changes. However, the moment (torque) of a couple is independent of the reference point P: Any point will give the same moment.In other words, a torque vector, unlike any other moment vector, is a "free vector". (This fact is called Varignon's Second Moment Theorem.)









The proof of this claim is as follows: Suppose there are a set of force vectors F₁, F₂, etc. that form a couple, with position vectors (about some origin P) r₁, r₂, etc., respectively. The moment about P is

Now we pick a new reference point P' that differs from P by the vector r. The new moment is

Now the distributive property of the cross product implies

However, the definition of a force couple means that

Therefore,

This proves that the moment is independent of reference point, which is proof that a couple is a free vector.

2D FORCE ANALYSIS : HOW TO FIND REACTIONS IN A CASE OF CONCURRENT FORCE SYSTEM ACTING ON A BODY IS IN EQUILIBRIUM

DEFINITION : CONCURRENT FORCE SYSTEM

If the lines of actions of all the forces in a force system pass through a common point, then the force system is called as Concurrent Force System. The equilibrium conditions for a concurrent force system is

ΣF_x = 0 and   ΣF_y = 0



The steps to find out reactions when a coplanar concurrent force system acting on a body in equilibrium condition :





STEP 1 :



(i) Draw the diagram and identify all the contact points the body makes with other bodies including ground.

(ii) Draw a tangent at each contact point with the object. These tangents are called Contact Surfaces.

(iii) Draw a perpendicular to the contact surface at each and every contact points. These perpendiculars will be the directions of reactions at each and every contact point.

(iv) Find the angles made by the reactions with respect to horizontal with the help of Geometry.





STEP 2 :



(i) Draw the Free Body Diagram (FBD) that consists of the external forces acting on the object. (applied forces, forces of gravity and reactions all are external forces)

(ii) Assign reactions by symbols like R₁, R₂ ....... and resolve all the external forces along X-axis and Y-axis.

(iii) Now add all the horizontal component forces as ΣF_x and put ΣF_x = 0 ---- eqn (1)

and add all the vertical component forces as ΣF_y and put ΣF_y = 0 --------eqn (2)

(iv) Solving these two equations we shall get values of  R₁, R_2.



FORCE: THE CAUSE OF ANY KIND OF CHANGE IN THE UNIVERSE

                           "When a student is introduced to the concept of force for the first time, the student would understand in a better way if we define force in formal way by explaining Mechanical Force which applied on an object produces or tends to produce certain kind of motion. Similarly, it can oppose a motion and thus it can a moving body to a halt."


                             In physics, a force is any influence that causes a free body to undergo an acceleration. Force can also be described by intuitive concepts such as a push or pull that can cause an object with mass to change its velocity (which includes to begin moving from a state of rest), i.e., to accelerate, or which can cause a flexible object to deform.

                            A force has both magnitude and direction, making it a vector quantity. Newton's second law, F=ma, can be formulated to state that an object with a constant mass will accelerate in proportion to the net force acting upon and in inversely  proportional to its mass, an approximation which breaks down near the speed of light.

                             Newton's original formulation is exact, and does not break down: this version states that the net force acting upon an object is equal to the rate at which its momentum changes.

                             Related concepts to accelerating forces include thrust, increasing the velocity of the object, drag, decreasing the velocity of any object, and torque, causing changes in rotational speed about an axis.

                            Forces which do not act uniformly on all parts of a body will also cause mechanical stresses, a technical term for influences which cause deformation of matter. While mechanical stress can remain embedded in a solid object, gradually deforming it, mechanical stress in a fluid determines changes in its pressure and volume.

                Newton's first law of Motion:

                    Newton's first law of motion states that objects continue to move in a state of constant velocity unless acted upon by an external net force or resultant force.

                   This law is an extension of Galileo's insight that constant velocity was associated with a lack of net force (see a more detailed description of this below). Newton proposed that every object with mass has an innate inertia that functions as the fundamental equilibrium "natural state" in place of the Aristotelian idea of the "natural state of rest". That is, the first law contradicts the intuitive Aristotelian belief that a net force is required to keep an object moving with constant velocity. By making rest physically indistinguishable from non-zero constant velocity, Newton's first law directly connects inertia with the concept of relative velocities. Specifically, in systems where objects are moving with different velocities, it is impossible to determine which object is "in motion" and which object is "at rest". In other words, to phrase matters more technically, the laws of physics are the same in every inertial frame of reference, that is, in all frames related by a Galilean transformation.



                         For example, while traveling in a moving vehicle at a constant velocity, the laws of physics do not change from being at rest. A person can throw a ball straight up in the air and catch it as it falls down without worrying about applying a force in the direction the vehicle is moving. This is true even though another person who is observing the moving vehicle pass by also observes the ball follow a curving parabolic path in the same direction as the motion of the vehicle. It is the inertia of the ball associated with its constant velocity in the direction of the vehicle's motion that ensures the ball continues to move forward even as it is thrown up and falls back down. From the perspective of the person in the car, the vehicle and every thing inside of it is at rest: It is the outside world that is moving with a constant speed in the opposite direction. Since there is no experiment that can distinguish whether it is the vehicle that is at rest or the outside world that is at rest, the two situations are considered to be physically indistinguishable. Inertia therefore applies equally well to constant velocity motion as it does to rest.



                        The concept of inertia can be further generalized to explain the tendency of objects to continue in many different forms of constant motion, even those that are not strictly constant velocity. The rotational inertia of planet Earth is what fixes the constancy of the length of a day and the length of a year.

                        Albert Einstein extended the principle of inertia further when he explained that reference frames subject to constant acceleration, such as those free-falling toward a gravitating object, were physically equivalent to inertial reference frames. This is why, for example, astronauts experience weightlessness when in free-fall orbit around the Earth, and why Newton's Laws of Motion are more easily discernible in such environments.

                       If an astronaut places an object with mass in mid-air next to him/herself, it will remain stationary with respect to the astronaut due to its inertia. This is the same thing that would occur if the astronaut and the object were in intergalactic space with no net force of gravity acting on their shared reference frame. This principle of equivalence was one of the foundational underpinnings for the development of the general theory of relativity.


Newton's second law of Motion:

A modern statement of Newton's second law is a vector differential equation:
where p is the momentum of the system, and is the F net (vector sum) force. In equilibrium, there is zero net force by definition, but (balanced) forces may be present nevertheless. In contrast, the second law states an unbalanced force acting on an object will result in the object's momentum changing over time.


                            By the definition of momentum,  p = mV ; where m is the mass and V is the velocity. In a system of constant mass, the use of the constant factor rule in differentiation allows the mass to move outside the derivative operator, and the equation becomes F = ma ; where m = mass of the body and a= acceleration of the body.


The
